KIRSTEN 2nd generation

Department : METAL STEM & Screw thro bowl
The 2nd generation of Kirstens settled down with O rings on bits and valves. The push rods now have a thinner end, a fit for the hole in the screw, another aid to cleaning.
Finishes were natural alloy polished, black (B), Heritage (X) which could be an antiqued brass effect, brushed silver or even a coppered effect.

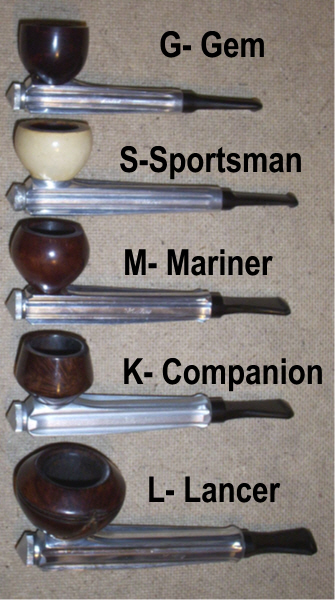

Lengths of pipe in straights
Gem.......5 inch.......stem 3 inch....... bore 3/8
Sportsman.5 3/4........stem 3 3/4........ bore 3/8
Mariner and Companion..5 7/8....stem 3 3/4....bore 7/16
Lancer 6 inch.........stem 4 inch....... bore 1/2

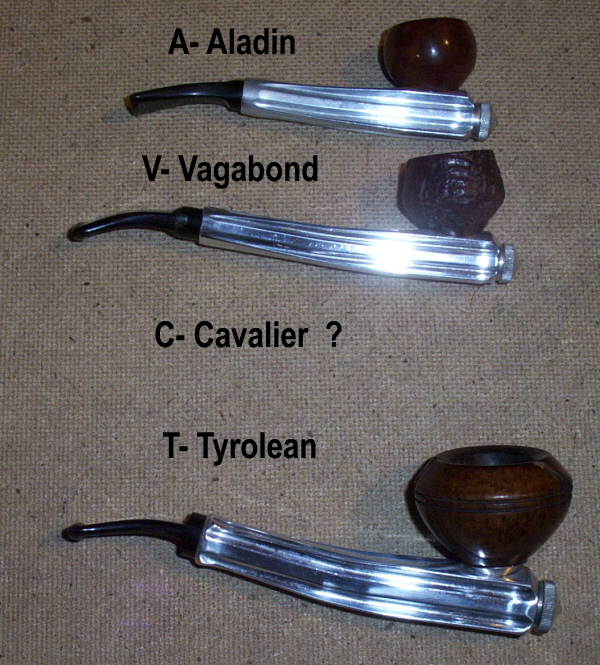

Length of pipe in quarter bents
Aladdin...5 inch...... stem 3 inch....... bore 3/8
Vagabond..5 3/4....... stem 3 3/4........ bore 3/8
Cavalier..5 7/8....... stem 3 3/4........ bore 7/16
Tyrolean..6 inch...... stem 4 inch...... bore 1/2 inch

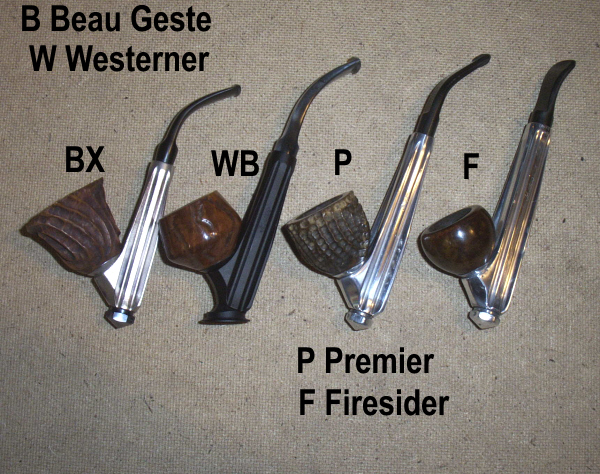

Length of pipe in full bents
Beau Geste...5 5/8 inch....stem 3 inch... bore 3/8 inch
Westerner....6.............stem 3 1/4... bore 7/16 inch
Premier......5 1/2.........stem 3 3/4.... bore 3/8
Firesider....5 3/4.........stem 4 inch... bore 7/16 inch

Bearing in mind the various choice of bits, the overall lenths are only a guide, the stem length is main dimension

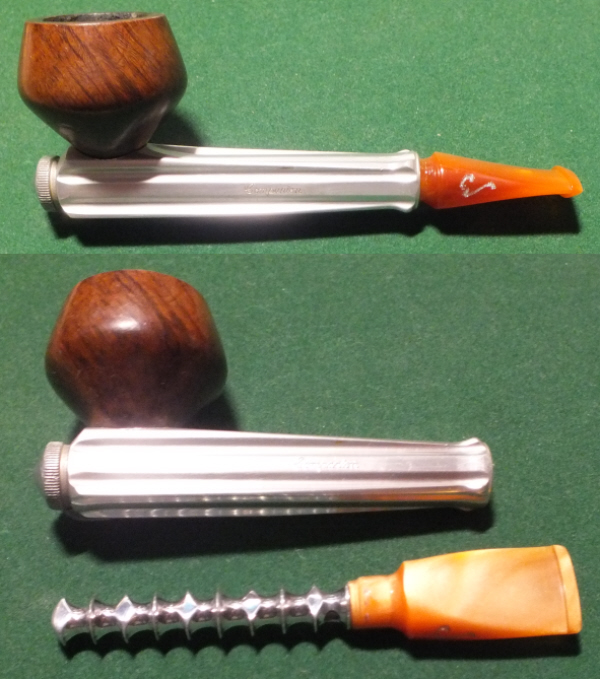

The lowest image is a Companion with Elie's E SuperKool push rod, designed to get even more cooling. To see more, try www.eliesfreehandpipes.com
